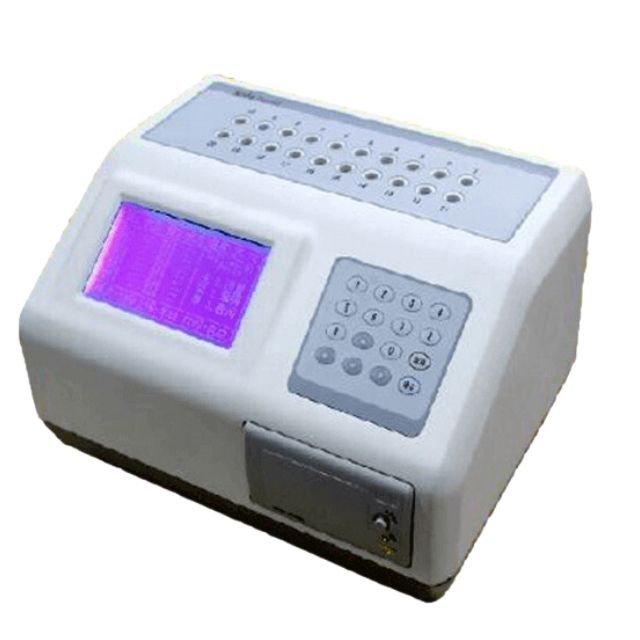

BIOMAX 20 Hole Auto ESR Analyzer

Our BIOMAX 20 Hole Auto ESR Analyzer is one of the best ESR Analyzers in Bangladesh. Contact Medistore BD to know more details or buy this at the best price in Bangladesh

The infrared transmitter-receiver system in the instrument can monitor 20 test tubes simultaneously. It will record a reading every 0.2mm of vertical distance of the test tube. This is the resolution of the instrument. It will measure once every 3 minutes. When the test tube is inserted, the analyzer starts to measure automatically (if there is no problem with barcode entry). The first measure is assumed “0” for the timing and the height of the blood in the test tube will be judged by the analyzer automatically.

The acceptable blood height range by the analyzer is between 50mm and 64mm. If the blood height is within this range, the test will continue. Otherwise, the analyzer will refuse to measure and warns the user about that.

Technology specifications:

Worker mode: Semi-automatic

Measuring time: 30/60 Minutes

Capacity: twenty pcs

Maximum mensuration speed: forty pcs/h

Mechanical/optical exactness of detection: +/- zero.1mm

Reproducibility of analysis: <3%

Reading quality among every channel: C.V. <6%

Memory capacity:260

Input: USB

Printer type: Built-in printer

Automatic temperature conversion: 18℃
