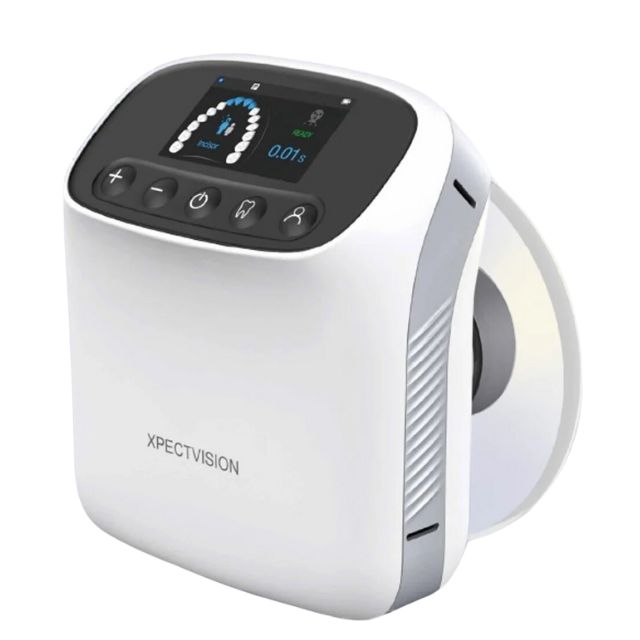

𝐗𝐩𝐞𝐜𝐭𝐯𝐢𝐬𝐢𝐨𝐧 𝐇𝐚𝐧𝐝𝐡𝐞𝐥𝐝 𝐃𝐞𝐧𝐭𝐚𝐥 𝐗-𝐑𝐚𝐲 𝐒𝐲𝐬𝐭𝐞𝐦

𝐗𝐩𝐞𝐜𝐭𝐯𝐢𝐬𝐢𝐨𝐧 𝐇𝐚𝐧𝐝𝐡𝐞𝐥𝐝 𝐃𝐞𝐧𝐭𝐚𝐥 𝐗-𝐑𝐚𝐲 𝐒𝐲𝐬𝐭𝐞𝐦

Brand: 𝐗𝐩𝐞𝐜𝐭𝐯𝐢𝐬𝐢𝐨𝐧

Model: xvbeam1000

Origin: China

 Stable output guarantees consistent image quality, shielding patients from repeated radiation exposure.
 The internal lead layer and external shielding hood provide excellent operator protection.
 The innovative docking station allows charging at any moment, significantly improving efficiency.

Specifications:

High-Voltage Module
Tube voltage (Fixed):  65kV il
Tube current (Fixed):  2.6mA
Loading time: 0.01s~2s
Nominal electric power : 0.169kW ( 65kV, 2.6mA , 0.1s)
Maximum output electrical power: 0.169kW
Target angle:12°

Nominal focal spot: 0.4mm

Nominal anode input power: 600W

Anode heat content 45000

Maximum X-ray tube voltage 70kV

Inherent filtration 0.8 mmol
Additional filtration 1.0 mmol

5.3 X-Ray exposure

Radiation Field Pattern Round

Output radiation field 60mm

SID 200mm

Focal spot – skin distance 20cm
